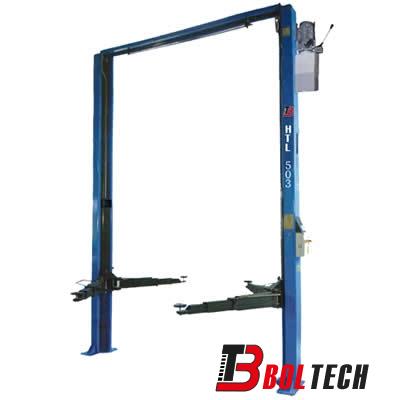

Electro-Hydraulic 2-Post Lift
Electromechanical locking device in case of rope breaking
Automatic Arm locking device
Feet protection guard
Interchangeable Screw Pads
Overload Safety Device
Descent Control valve
Safety-Valve in case of sudden loss of pressure
Dead Man" Controls 24V
Electrical Controlled Fall Safety
Safety Device in case of rope failure
|
|
HTL503
|
|
|
Dimensions (mm)
|
|
A
|
5070
|
|
B
|
4950
|
|
C
|
3100
|
|
D
|
3785
|
|
E
|
860-1700
|
|
|
HTL503
|
|
Max. capacity
|
5000Kg
|
|
Lifting time
|
45
|
|
Lowering time
|
42
|
|
Minimum height pad(mm)
|
95/150/250
|
|
Max height pad
|
1895/1950/2050
|
|
Distance between columns
|
3100
|
|
Max lift height (A)
|
5070
|
|
Electric motor
|
400v- 3 phase- 50 Hz
|
|
Electric motor power
|
3 KW
|
