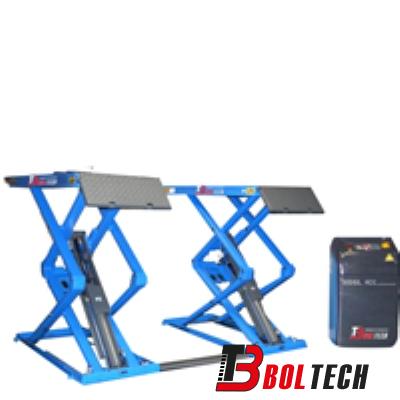

Electro-Hydraulic Double scissor lift
Pneumatic release of safety locks
Load-bearing structure in extra, “solid” certified-quality tubular steel
Large-scale external articulations supported on three load-bearing points of movement
Central articulations, 190 mm wide, supported on four load-bearing points of movement
self-lubricating bushes with tempered and chrome plated steel pins
|
|
HDSL 401
|
|
Max. capacity
|
4000 kg
|
|
Lifting time
|
34 Sec
|
|
Lowering time
|
46 Sec
|
|
Min.useful height
|
120 mm
|
|
Max. useful height
|
1825 mm
|
|
Lift length on the ground
|
2000 mm
|
|
Lift total width
|
2077 mm
|
|
Electrical Input
|
400 V- 3 phase- 50 Hz
|
|
Electric motor power
|
2.2 Kw
|
|
Max working pressure
|
320 bar
|
|
Pneumatic working pressure
|
6 -8 bar
|
|
Control circuit tension
|
24 V
|
|
Weight
|
754 kg
|
