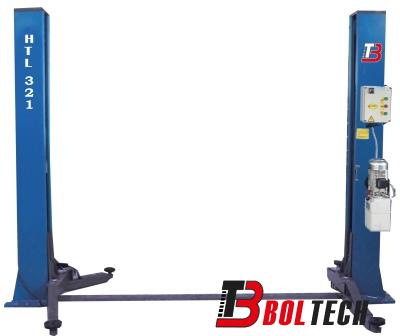

Two Post Lift HTL 321

Description

Technical Data

• HTL 321: Electromechanical locking device in case of rope breaking
• HTL 321-M: Manual mechanical locking device

• Automatic Arm locking device
• Feet protection guard
• Interchangeable Screw Pads
• Overload Safety Device
• Descent Control valve
• Safety-Valve in case of sudden loss of pressure
• "Dead Man" Controls 24V(HTL321)
• Electrical Controlled Fall Safety ( HTL321)
• Safety Device in case of rope failure

Max. capacity

3200 Kg

Lifting time

45±2 Sec

Lowering time

45±2 Sec

Minimum height pad(mm)

90

Max lifting height with pad

1920

Distance between columns

2700

Max lift height

2600

Electric motor power

400 V - 3 phase - 50 Hz - 2.2 KW

Basement

No

Cover for rope

Yes

Number of cylinders

1
