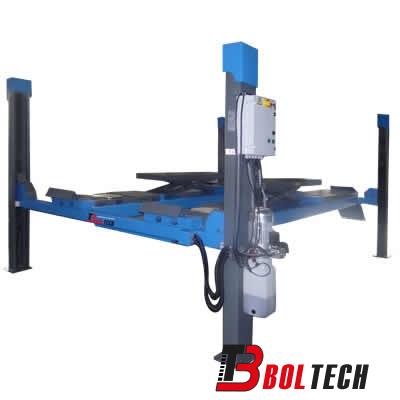

Electro-Hydraulic 4-Post Lift
Steel electrowelded shaped low-profile platforms
External anti-crushing profile Internal profile suitable for jacking beam installation
Stiff structure suited for wheel alignment
Lifting through hydraulic cylinder
Electrical unlocking of 4 safeties device
Electro-hydraulic safety system against accidental misalignment
Safety limit switch at minimal height
Easy and fast installation
Minimal maintenance
Slip plates for wheel alignment
Ready to install turn-tables for wheel alignmen
Suitable for Wheel alignmen
|
Description
|
Technical Data
|
- Steel electrowelded shaped low-profile platforms
- External anti-crushing profile Internal profile suitable for jacking beam installation
- Stiff structure suited for wheel alignment
- Lifting through hydraulic cylinder
- Electrical unlocking of 4 safeties device
- Electro-hydraulic safety system against accidental misalignment
- Safety limit switch at minimal height
- Easy and fast installation
- Minimal maintenance
- Slip plates for wheel alignment**
- Ready to install turn-tables for wheel alignment**
- Table lift for run-out compensation procedure in wheel alignment process**
- Suitable for Wheel alignment**
|
Max. capacity (Main Lift)
|
4000 Kg
|
|
Max. capacity (Table Lift)
|
2500 Kg
|
|
Lifting time
|
48±3 Sec
|
|
Lowering time
|
48±3 Sec
|
|
Max. Height
|
1785±5 mm
|
|
Min. Height
|
235±5 mm
|
|
Distance between Columns
|
2929 mm
|
|
Platform Length
|
4240 mm
|
|
Electric motor
|
400 v- 3 phase- 50 Hz
|
|
Electric motor power
|
2.2 Kw
|
|
Lifting Table total lenght
|
1515 mm
|
|
Lifting Table Height
|
400 mm
|
