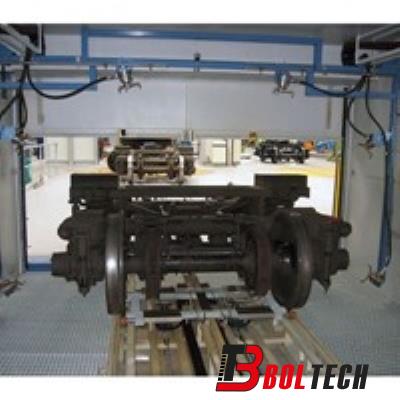

Bogie Washing Plant
• Washing the bogie and chasse from any sediment and oil with the highest and most advanced technology in the world
• The machine, generally, has two doors one to enter the bogie and the other for exit
• Including a washing and rinsing fixed spray poles
• Including two tanks: one with the washing solution and one with the water to rinse
• According to the room available the tanks can be positioned either above ground or in a technical pit under floor level next to the cabin
• The introduction and the exit of the bogie is by automatic shifting system
• The washing solution and the rinsing water are recovered and reused as much as possible to reduce the environmental footprint
• To achieve a better result, a heated washing solution is used
• A control and supervision PLC based system allows both an on-site and a remote washing plant management
• The connection can be Modem, LAN, WIFI or wire
• The user interacts with the system through an easy graphical interface with capability to release or email the data
• If the space is limited, a one-door washing plant can be installed with manual shifting of the bogie, in which only one movable spray pole, used both for the washing and for the rinsing
Bogie Frame Washing Plants
• Washing after demounting the bogie
• Including distinct oscillating spray poles to spray water and detergent
• Including two tanks positioned under the cabin, one with the washing solution and one with rinsing water
• Installation with no need of civil work
• The washing solution and the rinsing water are recovered and reused as much as possible to reduce the environmental footprint
• To achieve a better result, a heated washing solution is used
• A control and supervision PLC based system allows both an on-site and a remote washing plant management
• The connection can be Modem, LAN, WIFI or wire
• The user interacts with the system through an easy graphical interface with capability to release or email the data
