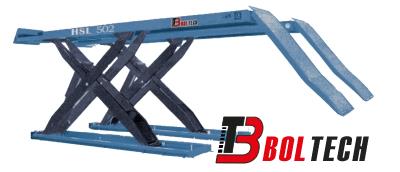

Electro-Hydraulic scissor lift
Versions: inground/on floor
Electric-hydraulic functioning
hydraulic synchronism of platforms
(Rack mechanical safety on main lift and auxiliary lift pistons (LT and GT
Hydraulic safety using parachute valve
Overload security valve
Lowering control valve
Photoelectric sensor safety device for platform leveling
Manual lowering device in case of power failure
Acoustic-light signal for final lowering phase
Micro switch sensors
Low voltage controls (24V)
Internal guide for jack sliding
Slip plates for wheel alignment
Ready to install turn-tables for wheel alignment
Suitable for 3D wheel alignment
|
Description
|
Technical Data
|
- Versions: inground/on floor
- Electric-hydraulic functioning
- hydraulic synchronism of platforms
- Rack mechanical safety on main lift and auxiliary lift pistons (LT and GT)
- Hydraulic safety using parachute valve
- Overload security valve
- Lowering control valve
- Photoelectric sensor safety device for platform leveling
- Manual lowering device in case of power failure
- Acoustic-light signal for final lowering phase
- Micro switch sensors
- Low voltage controls (24V)
- Internal guide for jacking beam **
- Sliding plates for wheel alignment **
- Ready to install turn-tables for wheel alignment **
- Table lift for run-out compensation procedure in wheel alignment process **
|
Max. capacity (Main Lift)
|
5000 Kg
|
|
Max. capacity (Table Lift)**
|
N/A
|
|
Maximum lifting height
|
1700 mm for inground versions
2000-2100 mm for on floor versions
|
|
Maximum height (table lift)**
|
N/A
|
|
Platform length
|
5100mm
|
|
Platform width
|
800 mm
|
|
Lifting time
|
60 Sec
|
|
Lowering time
|
60 Sec
|
|
Electric motor
|
400 v- 3 phase- 50 Hz
|
|
Electric motor power
|
3KW
|
|
Pump
|
6.5 lit/min
|
|
Max working pressure
|
240 bar
|
|
Pneumatic working pressure
|
4-8 bar
|
|
Control circuit tension
|
24 V
|
