Wagon & Train Washing Plant
Drive Through Washing Plant
• It is used for washing trains passing through at controlled speed (max. 7km/h) or with shunting
• Designing the length and size of the washing system based on the shape and structure of the wagon
• Minimum water and detergent consumption and maximum productivity through sensor lines along the line
• Including pre-wetting and detergent spray stands, vertical brush washing stands and softening water rinsing stands
• Possibility to add a front and rear washing stand and under frame washing plant

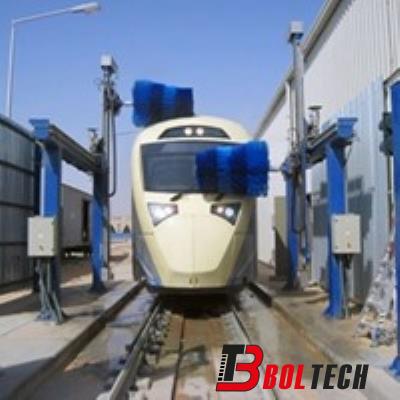

Moving Portal and Semi Portal
• To wash locomotives, coaches and short-length trains
• Can be installed in a specific technical room or in sheds
• The portal moves longitudinally on independent tracks or can be supported by a hot dip galvanized and painted steel structure
• Can be equipped with a minimum of two vertical brushes to wash the sides of the train up to four vertical ones
• Can be equipped with a horizontal brush for the roof, front and rear of the train
• A high pressure cold or hot water system can be added to wash the eaves and/or the wheels
• A control and supervision computerized system allows both an on-site and a remote washing plant management
• The connection can be Modem, LAN, WIFI or wire
• The portal moves longitudinally on independent tracks
• The computerized control system, tanks, pumps and all the components necessary for the management of the plant, installed in a specific technical room on site or in an equipped container
Under Chassis Washing Plants
• Moving trolley under frame washing plants
• It is installed in the washing platform under the wagon
• Washing the under frame and of the external wheel with fixed nozzles with rotating heads and with high pressure
• The trolley may be equipped with an additional spray pole for the washing of the pit at the end of the work cycle or of the shift
Stationary Under Chassis Washing Plants
• To wash the under chassis of locomotives, coaches and metro while train moves independently at controlled speed
• Stainless steel spray pole with fixed nozzles spray the detergent
• Stainless steel spray pole with fixed nozzles spray the water with high pressure
• The spray poles can be supplied with cold or hot water
• A control and supervision computerized system allows both an on-site and a remote washing plant management
• The connection can be Modem, LAN, WIFI or wire
• The user interacts with the system through an easy graphical interface with capability to release or email the data
The Device to Remove The Graphics from The Body of The Train & Subway
• Rinse with sodium bicarbonate
• Using high pressure water
