Rail Profile and Track Geometry Measurement System
The DMA Track Geometry Measurement System (TGMS) is a vehicle-mounted track diagnostic equipment capable of measuring the Track Geometry during running.
All measuring instruments are installed on a rigid road, mounted on the vehicle bogie.
Videos and printers are installed inside the vehicle to display and print the data.
The DMA Optical Rail Profile Measurement System (ORPMS) is a vehicle-mounted track diagnostic equipment capable of measuring both rail profiles while in operation.
It is also used to collect information necessary to evaluate running dynamics, such as rail wear and equivalent conicity.
AUTOMATIC SWITCH INSPECTION & MEASUREMENT SYSTEM (SIM
The DMA Switch Inspection & Measurement
(SIM) System is a compact vehicle-mounted equipment that automatically captures all the track switches with multiple high speed cameras located under the vehicle.
The extremely high quality images produced are stored and digitally sorted, assigned and analyzed, with the help of an intelligent software.
The multiple point views also cover all areas of inspection which may be missed out when done manually.
The automatic SIM System also eliminates long service downtime and personnel hazard when done manually.

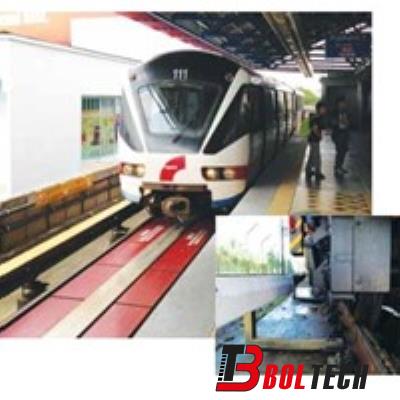

3RD RAIL MEASUREMENT SYSTEM
The DMA 3rd Rail Measurement System is a compact vehicle-mounted equipment which automatically measures the alignment and distance of the electrical power rails with respect to their original installed position
or the running rails, etc.
The system is fast and accurate, and the images captured are digitally stored for further processing
or historical analysis.
This helps to eliminate the manual inspection of the 3rd Rail which otherwise can be very tedious/monotonous and may lead to mistakes.
Rail Monitor Device - RML 3000
The Railmonitor 3000 transverse profile rail measuring device is used to measure and evaluate rail and switch profiles, grooved rails, Vignole rails, head heights, cants, track gauges, switch tongues and frogs. Approved by Deutsche Bahn DB Netz AG for the highest speed class v >280 km/h.
