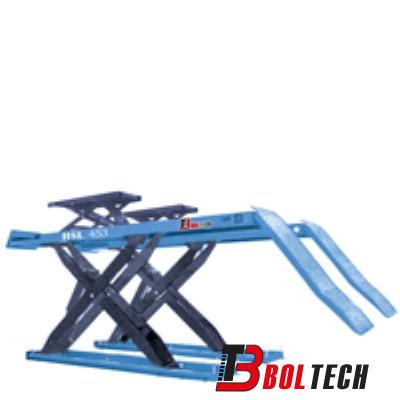

Electro-Hydraulic scissor lift
Versions: inground/on floor
Electric-hydraulic functioning
hydraulic synchronism of platforms
(Rack mechanical safety on main lift and auxiliary lift pistons ( LT and GT
Hydraulic safety using parachute valve
Overload security valve
Lowering control valve
Photoelectric sensor safety device for platform leveling
Manual lowering device in case of power failure
Acoustic-light signal for final lowering phase
Micro switch sensors
(Low voltage controls (24V
Internal guide for jack sliding
Slip plates for wheel alignment
Ready to install turn-tables for wheel alignment
Table lift for run-out compensation procedure in wheel alignment process
Suitable for Wheel alignment
|
Description
|
Technical Data
|
- Versions: inground/on floor
- Electric-hydraulic functioning
- hydraulic synchronism of platforms
- Rack mechanical safety on main lift and auxiliary lift pistons (LT and GT)
- Hydraulic safety using parachute valve
- Overload security valve
- Lowering control valve
- Photoelectric sensor safety device for platform leveling
- Manual lowering device in case of power failure
- Acoustic-light signal for final lowering phase
- Micro switch sensors
- Low voltage controls (24V)
- Internal guide for jacking beam **
- Sliding plates for wheel alignment **
- Ready to install turn-tables for wheel alignment **
- Table lift for run-out compensation procedure in wheel alignment process **
|
Max. capacity (Main Lift)
|
4500 Kg
|
|
Max. capacity (Table Lift)**
|
3000 Kg
|
|
Maximum lifting height
|
1700 mm for inground versions
2000-2100 mm for on floor versions
|
|
Maximum height (table lift)**
|
565 mm
|
|
Platform length
|
4500mm
|
|
Platform width
|
800 mm
|
|
Lifting time
|
60 Sec
|
|
Lowering time
|
60 Sec
|
|
Electric motor
|
400 v- 3 phase- 50 Hz
|
|
Electric motor power
|
3KW
|
|
Pump
|
6.5 lit/min
|
|
Max working pressure
|
240 bar
|
|
Pneumatic working pressure
|
4-8 bar
|
|
Control circuit tension
|
24 V
|
