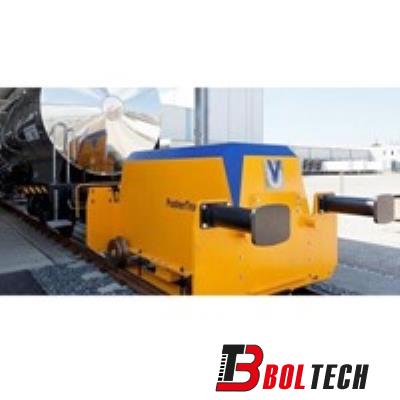

Standard Gauge Pusher Truck
A standard gauge pusher truck is used for preference on terminated tracks, where heavy trains with a total weight of up to 4,000 tons can be moved. As an additional variation, the pusher truck is able to extend laterally enabling unobstructed use of the railway track for transit traffic.
• Traction forces up to 170 kN
• Max. pulling load up to 4.000 t
• Hunting speeds with load 0,4 m/s, without load 1,0 m/s
• Shunting lengths up to 500 m
• Installation Position extendable laterally or behind the puffer stop
Wheel-Acting Pusher Truck
For transit tracks it is advisable to use a shunting system with wheel acting pusher trucks, in order for the track to remain freely accessible when the pusher rollers are retracted. All commonly used loading methods can be implemented, because the pusher rollers can act on any random axle. This enables the realization of flexible and fully automated processes.
• Traction forces up to 50 (70) kN
• Max. pulling load up to 1.200 t
• Hunting speeds with load 0,5 m/s, without load 1,4 m/s
• Shunting lengths up to 500 m
• Double pusher rollers for a safe operation
Small Pusher Truck/Chain Coupling
A closed cable hoisting system is continuously routed along the shunting track, whereas the coupling to the train is performed using a sling chain or a coupling rod.
• Traction forces up to 30 (50) kN
• Max. pulling load up to 700 t
• Hunting speeds with load 0,3 m/s, without load 1,4 m/s
• Shunting lengths up to 200 m
• Installation either above or under ground
