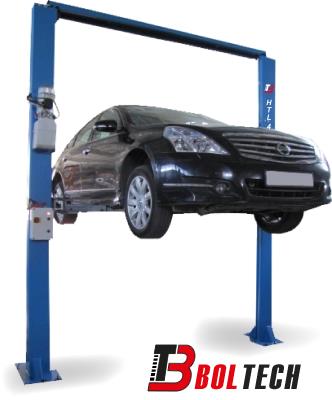

Two Post Lift HTLA 402-M

Two Post Lift HTLA 402-M - 2-POST LIFTS - Garage Equipment -  - Boltech Two Post Lift HTLA 402-M

Two Post Lift HTLA 402-M



Product code : Label

Description

Technical Data

  • Automatic locking device ( HTL A401 / 402 / 403 )
  • Manual locking device ( HTL A401-M / 402-M / 403-M )
  • Strong structure
  • 2- segment structure arms
  • Automatic Arm unlocking device
  • Minimum height micro switch
  • Electro-Mechanical  locking safety device
  • Electro-Hydraulic safety system against accidental misalignment
  • Top safety bar for anti-crash vehicle
  • Overload Safety Device
  • Safety-Valve in case of sudden loss of pressure
  • Minimal maintenance
  • Easy installation
  • Compact package for more quantity in one container

Max. capacity

4000 Kg

Lifting time

49 Sec

Lowering time

55 Sec

Minimum height pad(mm)

100/130

Total lifting height with pad (mm)

1950

Distance between columns (mm)

2680

Electric motor power

400 V - 3 phase - 50 Hz - 2.2 KW
