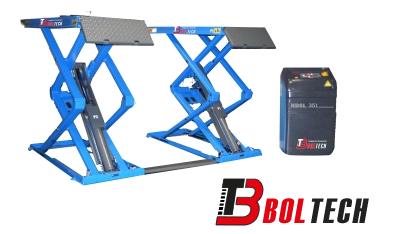

Scissor Lift HSDL 351

Product code : Label


Technical Data

  • Pneumatic release of safety locks
  • Load-bearing structure in extra, “solid” certified-quality tubular steel
  • Large-scale external articulations supported on three load-bearing points of movement
  • Central articulations, 190 mm wide, supported on four load-bearing points of movement
  • self-lubricating bushes with chrome plated steel pins

Metalic and plastic cabinet for power unit

Max. capacity


Lifting time

34 Sec

Lowering time

46 Sec

Min. useful height

115 mm

Max. useful height

1825 mm

Lift length on the ground

2000 mm

Lift total width

2077 mm

Electric motor power

2.2 Kw

Max working pressure

320 bar

Pneumatic working pressure

6 -8 bar

Control circuit tension

24 V
