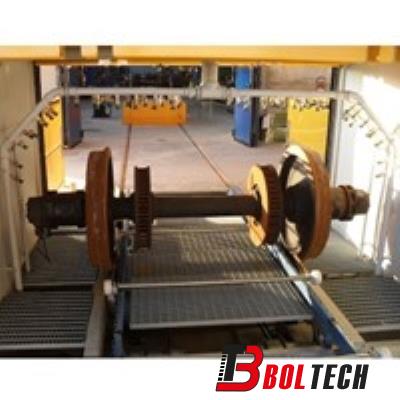

Train and Metro Wheelset Washing Machine
• Washing the demounted wheelset from bogie
• With separate fixed spray poles for the washing and rinsing
• With two tanks, one for washing solution and one with the water to rinse
• According to the room available, tanks can be positioned either above ground or in a technical pit underfloor level next to the cabin
• The washing solution and the rinsing water are recovered and reused
• To obtain a very good result a heated washing solution can be used
• A control and supervision PLC based system allows both an on-site and a remote washing plant management
• The connection can be Modem, LAN, WIFI or wire
• The user interacts with the system through an easy graphical interface with capability to release or email the data
Wheelset Cleaning Device
• It works fully automatically
• Thanks to special brushing and grinding tools as well as rotation processes, it is possible to clean the wheel sets both on the inside and on the outside
• Cleaning Collection:
• Cabin with carport doors
• Cleaning unit with sandblasting and polishing equipment
• Wheelbase hold position
• Provide wheelset lifting (optional)
• The cabin is equipped with ventilation and filtering unit (explosion-proof)
• Possibility to have cleaning with different quality because of changing capability of sanding
• Low cost maintenance
• If needed, it is possible to clean the demounted axle
• Time of working: less than 10 min
