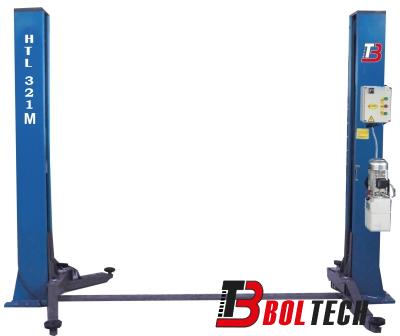

Two Post Lift HTL 321-M

Two Post Lift HTL 321-M - 2-POST LIFTS - Garage Equipment -  - Boltech Two Post Lift HTL 321-M

Two Post Lift HTL 321-M



Product code : Label

Description

Technical Data

  • HTL 321: Electromechanical locking device in case of rope breaking
  • HTL 321-M: Manual mechanical locking device



  • Automatic Arm locking device
  • Feet protection guard
  • Interchangeable Screw Pads
  • Overload Safety Device
  • Descent Control valve
  • Safety-Valve in case of sudden loss of pressure
  • "Dead Man" Controls 24V(HTL321)
  • Electrical Controlled Fall Safety ( HTL321)
  • Safety Device in case of rope failure



Max. capacity

3200 Kg

Lifting time

45±2 Sec

Lowering time

45±2 Sec

Minimum height pad(mm)

90

Max lifting height with pad

1920

Distance between columns

2700

Max lift height

2600

Electric motor power

400 V - 3 phase - 50 Hz - 2.2 KW

Basement

No

Cover for rope

Yes

Number of cylinders

1
